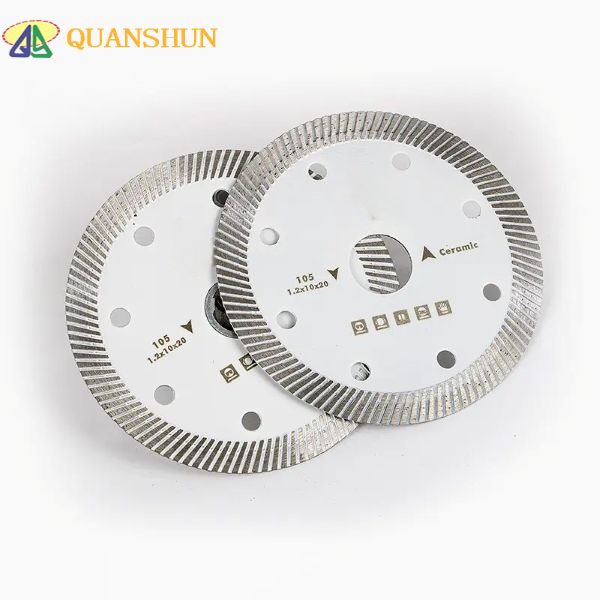

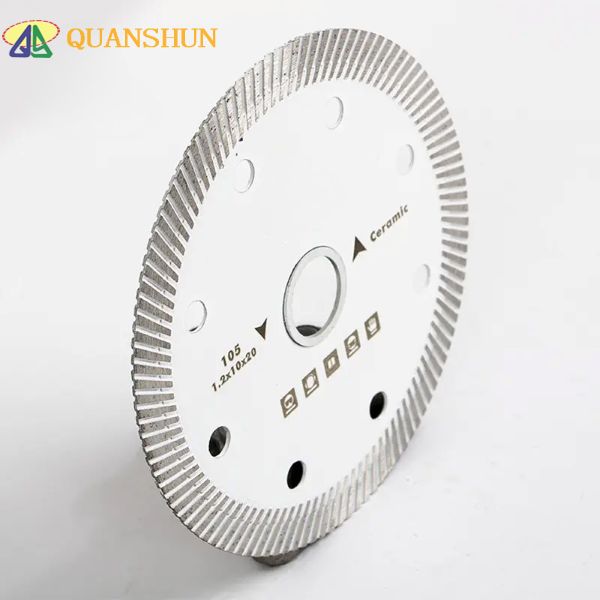

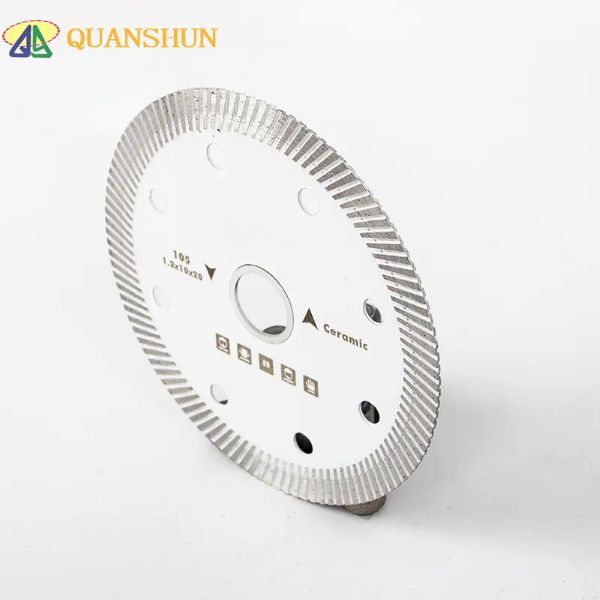

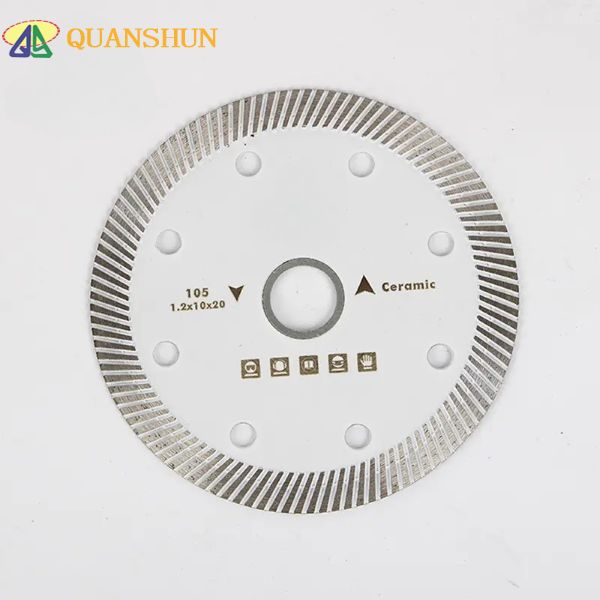

Professional 105mm Diamond Ceramic Cutting Saw Blade

Product Overview

Our 105mm Diamond Ceramic Cutting Saw Blade is a professional-grade, ultra-thin cutting tool engineered for high-precision dry cutting of ceramic tiles, porcelain, and similar hard, brittle materials. Designed for efficiency and clean finishes, this blade features a specialized narrow continuous turbo rim that optimizes cutting performance and heat management. Its super-thin body and segmented structure deliver exceptional sharpness and smooth operation, making it the ideal choice for linear and vertical cutting applications where precision and a chip-free edge are paramount.

Key Features & Benefits

• Narrow Continuous Turbo Rim Design: The blade’s edge features a precision-engineered continuous turbo rim. This design significantly enhances chip removal and heat dissipation during dry cutting, preventing material burn-out and glaze buildup on the segments. This results in consistently fast, clean cuts and extends the operational life of the blade.

• Ultra-Thin Body for Precision Cutting: Engineered with a super-thin profile (as thin as 1.2mm), this blade reduces kerf loss and material consumption. The thin design minimizes cutting resistance, allowing for highly precise, straight-line, and vertical cuts with exceptional sharpness and a superior surface finish on the workpiece.

• Specialized Formula for Ceramic & Porcelain: The diamond segments are formulated with a specific bond matrix and high-quality diamond grit calibrated for the hardness and abrasiveness of ceramic and porcelain tiles. This ensures aggressive cutting action while preventing segment wear issues like broken teeth or burnt edges, guaranteeing reliable performance.

• Optimized for Dry Cutting Applications: Specifically designed for regular linear and vertical dry cutting where the cutting thickness is less than 15mm. It is perfectly suited for tile installation, trimming, and fabrication work, offering the convenience of dry cutting without compromising on cut quality or speed.

• Durable Construction with Certified Quality: The blade core is laser-cut for perfect balance, reducing vibration. Key specifications like diameter (105mm/110mm), bore size (10mm, 20mm, 22.23mm, 25.4mm), and segment details are clearly marked. The presence of certification marks on the product indicates compliance with industry standards for safety and performance.

Technical Specifications & Models

Available in specific configurations to match different machinery and precision requirements, as detailed in the product table.
