Turbo Segmented Rim Double Row Concrete Diamond Grinding Cup Wheel
Views :
Update time : 2026-02-03
Top Quality 4-1/2 Inch Double Row Diamond Cup Grinding Wheel for Grinding Concrete Segment Turbo Row Grinding Wheel Angle Grinder for Stone Concrete Cement。
| Product Name | Turbo Segmented Rim Double Row Concrete Diamond Grinding Cup Wheel/Segmented Turbo Cold Pressed Diamond Grinding Wheel /diamond cup grinding wheel |
| Blade Material | Diamond |
| Body Material | 65Mn Steel |
| Segment Type | Double Row (Single Row, Continuous Rim, Continuous Turbo Rim, Segmented Turbo Rim, T Segment, C Segment, Tornado Segment, and Boomerang Segment are available.) |
| Process | Cold Pressed Sintered, High-Frequency Welded |
| Size | 80-180mm |
| Surface Finish | Color Painting |
| Color | As clients' requests |
| Grit | Coarse/medium/fine |
| Arbor | 5/8"-11, M14, 22.23mm etc |
| Package | in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell, Metal Box |
| Features | 1.The high diamond concentration provides for a faster cut rate while the high quality of the diamonds provides longer blade life. |
| 2.The double row of diamonds on these blades provides for heavy material removal and provides longer life. | |
| 3.Grinding segments with heat treated steel bodies which provide increases durability and wheel life. | |

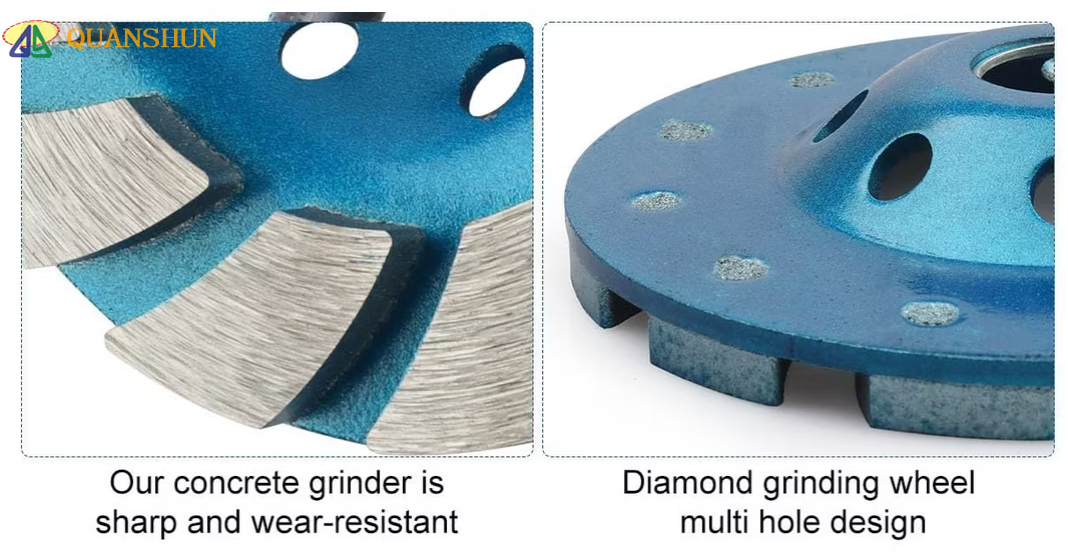

| 4.Venting holes for fast, dry or wet grinding with long life. | |
| 5.Suitable for use on grinding on marble, tile, concrete, and rock. |

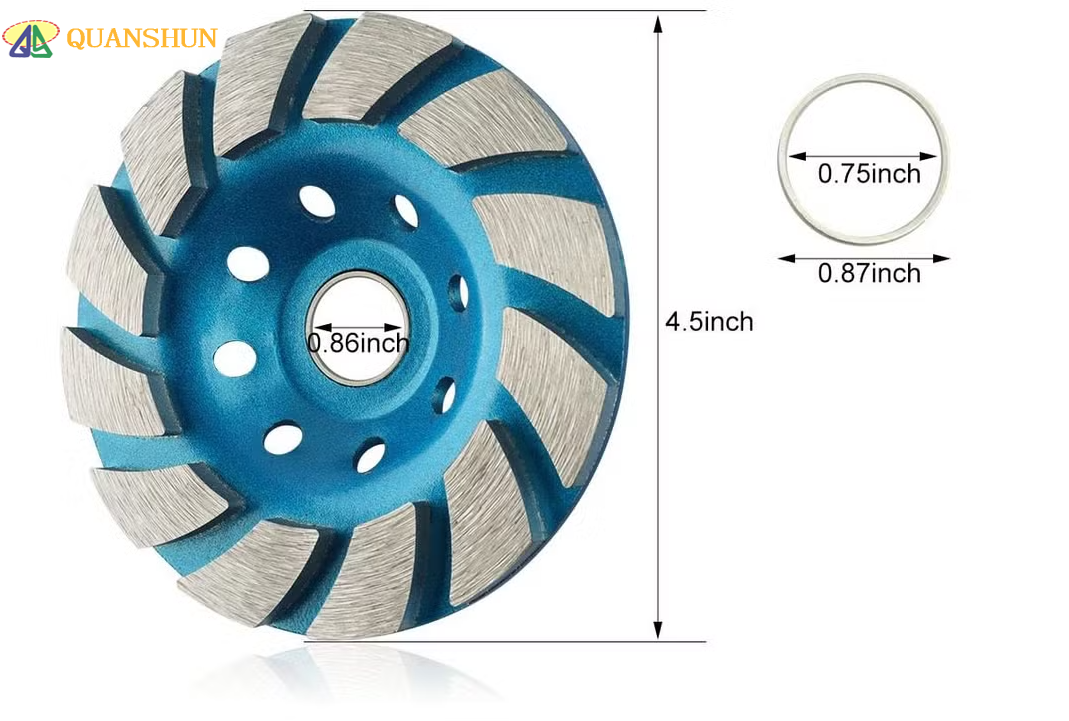

| Outer Dia | bore | Segment Size | Segment NO. | |
| 3' | 80mm | 15.88mm | 30x5x8 | 6 |
| 4' | 105mm | 16/20/22.23 | 30x5x8 | 7 |
| 5' | 125mm | 16/20/22.23 | 30x5x8 | 10 |
| 6' | 150mm | 20/22.23 | 30x5x8 | 12 |
| 7' | 180mm | 22.23/25.4 | 30x5x8 | 14 |
| 8' | 200mm | 22.23/25.4 | 30x5x8 | 14 |
| 9' | 230mm | 22.23/25.4 | 30x5x8 | 18 |

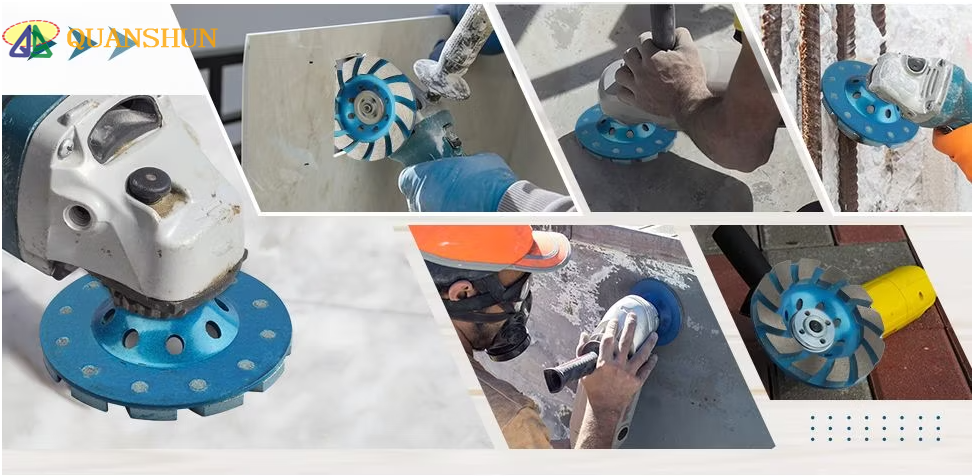

Our diamond grinder wheel is used for dry/wet grinding all types of stone like concrete, granite, stone, marble, tile, cement , masonry, and some other construction material to smooth uneven surfaces and remove flashing.can also be used for the removal of glues and epoxies.
made of high quality of diamond,
Large grinding segments with heat treated cup design.use long life.
Use dry/wet to smooth concrete or field stone.Perfect for use on grinding on marble, tile, concrete and rock.
